High Efficiency Flame / Plasma Big Gantry CNC Cutting Machines OEM Service
Description:
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
3. Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
4. With two cutting modes: Flame Cutting & Plasma Cutting.
5. Cutting speed, high accuracy and low cost.
Features:
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World’s top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Technical Parameters for Heavy Gantry CNC Cutting Machine:
| 1 | Cutting shape | Steel plate with any plane shapes fromed by straight lines and arcs |
| 2 | LCD Display Dimension | 10.4 Inches |
| 3 | Effective Cutting Size | 3200*10000mm |
| 4 | Railway Size | 4000*12000mm |
| 5 | Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| 6 | Flame Cutting Thickness | 5--150mm |
| 7 | Lifting body | 1 lifting body standard |
| 8 | Cutting Speed | 0-8000mm per minute |
| 9 | Height Control | Electric Height Control+Arc Voltage Height Control(THC) |
| 10 | Drive Mode | Bilateral drive |
| 11 | Cutting Mode | flame and plasma |
| 12 | Ignition device | Auto ignition device |
| 13 | File transmission | USB transmission |
| 14 | Gas Pressure | Max. 0.1Mpa |
| 15 | Oxygen Pressure | Max.0.7Mpa |
| 16 | Cutting Gas | Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air |
| 17 | Software | FastCAM Standard (support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| 18 | Cutting accuracy | ±0.5mm |
| 19 | Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| 20 | Rated Power Supply | 1500W |
| 21 | Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
Applications:
They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.

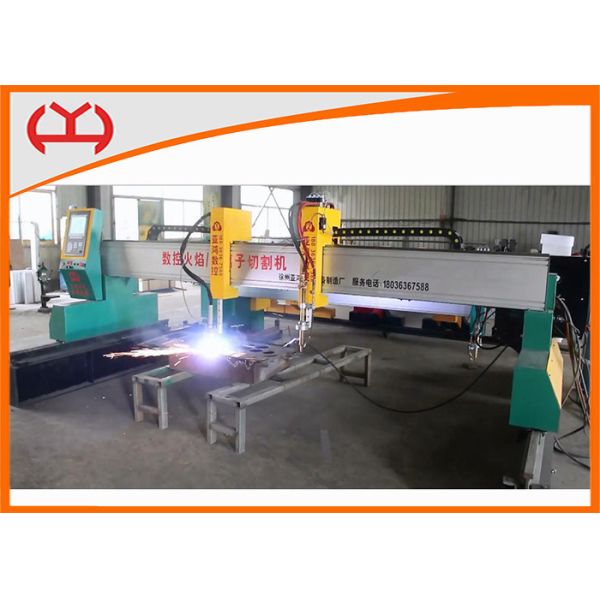

Heavy Gantry CNC Cutting Machine:
